- 產品介紹

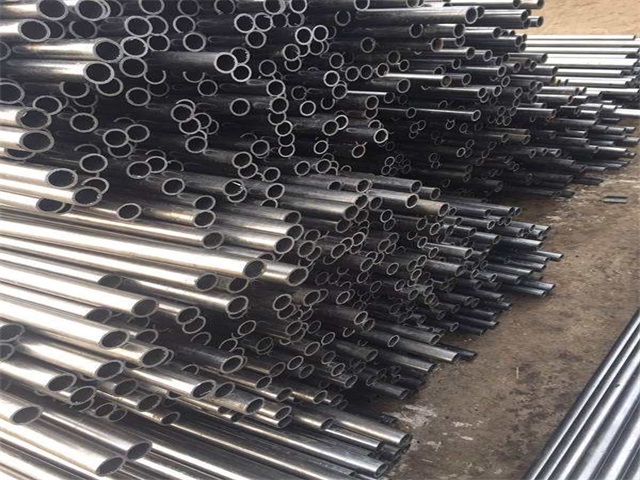

美標無縫鋼管是無縫鋼管的一種，美標無縫鋼管分為結構用無縫管及高壓耐熱美標無縫鋼管。主要區別于美標無縫鋼管的生產標準及其工業，對美標無縫鋼管進行退火調質改變它的機械性能。達到所需要的加工條件。其性能比一般的無縫鋼管多變利用值較高，美標無縫鋼管化學成分中含Cr比較多，耐高溫、耐低溫、耐腐蝕的性能。普碳無縫管中不含合金成分或者合金成分很少，美標無縫鋼管在石油、航天、化工、電力、鍋爐、軍工等行業的用途比較廣泛的原因因為美標無縫鋼管的機械性能多變化好調整。
執行標準
中國國家標準
GB/T8162-2008
GB/T8163-2008
GB3087-2008
GB6479-2000
GB9948-2006
GB5310-2008
ASME SA210 —— 美國鍋爐及壓力容器規范
ASME SA213 —— 美國鍋爐及壓力容器規范
DIN17175 ——聯邦德國工業標
力學性能
化學成分：
牌號
抗拉強度（MPa）
屈服強度（MPa）
伸長率（%）
硬度
GB3087
10
335～475
≥195
≥24
/
20
410～550
≥245
≥20
/
GB5310
20G
410～550
≥245
≥24
/
20MnG
≥415
≥240
≥22
/
25MnG
≥485
≥275
≥20
/
15CrMoG
440～640
≥235
≥21
/
12Cr2MoG
450～600
≥280
≥20
/
470～640
≥255
≥21
/
12Cr2MoWVTiB
≥345
≥18
/
10Cr9Mo1VNb
≥415
≥20
/
ASME SA210
SA210A-1
≥415
≥255
≥30
≤143HB
SA210C
≥485
≥275
≥30
≤179HB
ASME SA213
SA213 T11
≥415
≥205
≥30
≤163HB
SA213 T12
≥415
≥220
≥30
≤163HB
SA213 T22
≥415
≥205
≥30
≤163HB
SA213 T23
≥510
≥400
≥20
≤220HB
SA213 T91
≥585
≥415
≥20
≤250HB
SA213 T92
≥620
≥440
≥20
≤250HB
DIN17175
ST45.8/Ⅲ
410～530
≥255
≥21
/
15Mo3
450～600
≥270
≥22
/
13CrMo44
440～590
≥290
≥22
/
10CrMo910
480～630
≥280
≥20
|
標準
|
牌號 | 化學成分（%） | ||||||||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | Al | W | Ti | Nb | N | ||
| GB3087 | 10 | 0.07～0.13 | 0.17～0.37 | 0.38～0.65 | ≤0.030 | ≤0.030 | 0.3～0.65 | / | ≤0.25 | ≤0.30 | / | / | ||||
|
20
|
0.17～0.23 | 0.17～0.37 | 0.38～0.65 | ≤0.030 | ≤0.030 | 0.3～0.65 | / | ≤0.25 | ≤0.30 | / | / | |||||
| GB5310 | 20G | 0.17～0.24 | 0.17～0.37 | 0.35～0.65 | ≤0.030 | ≤0.030 | ≤0.25 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.08 | |||||
| 20MnG | 0.17～0.24 | 0.17～0.37 | 0.70～1.00 | ≤0.030 | ≤0.030 | ≤0.25 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.08 | ||||||
| 25MnG | 0.18～0.24 | 0.17～0.37 | 0.80～1.10 | ≤0.030 | ≤0.030 | ≤0.25 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.08 | ||||||
| 15CrMo | 0.12～0.18 | 0.17～0.37 | 0.40～0.70 | ≤0.030 | ≤0.030 | 0.80～1.10 | 0.40～0.55 | ≤0.20 | ≤0.30 | |||||||
| 12Cr2MoG | 0.08～0.15 | ≤0.50 | 0.40～0.70 | ≤0.030 | ≤0.030 | 2.00～2.50 | 0.90～1.20 | ≤0.20 | ≤0.30 | |||||||
| 12Cr1MoV | 0.08～0.15 | 0.17～0.37 | 0.40～0.70 | ≤0.030 | ≤0.030 | 0.90～1.20 | 0.25～0.35 | ≤0.20 | ≤0.30 | 0.15～0.30 | ||||||
| 12Cr2MoWVTiB | 0.08～0.15 | 0.45～0.75 | 0.45～0.65 | ≤0.030 | ≤0.030 | 1.60～2.10 | 0.50～0.65 | ≤0.20 | ≤0.30 | 0.28～0.42 | 0.30～0.55 | 0.08～0.15 | B 0.002～0.008 | |||
| 10Cr9Mo1VNb | 0.08～0.12 | 0.20～0.50 | 0.30～0.60 | ≤0.020 | ≤0.010 | 8.00～9.50 | 0.85～1.05 | ≤0.20 | ≤0.40 | 0.18～0.25 | ≤0.015 | 0.06～0.10 | 0.03～0.07 | |||
| ASME SA210 | SA210A-1 | 0.13～0.19 | ≥0.1 | 0.45～0.65 | ≤0.030 | ≤0.030 | ||||||||||
| SA210C | 0.18～0.24 | ≥0.1 | 0.80～1.10 | ≤0.030 | ≤0.030 | |||||||||||
| ASME SA213 | SA213 T11 | 0.05～0.15 | 0.50～1.0 | 0.30～0.60 | ≤0.030 | ≤0.030 | 1.00～1.50 | 0.50～1.00 | ||||||||
| SA213 T12 | 0.05～0.15 | ≤0.50 | 0.30～0.61 | ≤0.030 | ≤0.030 | 0.80～1.25 | 0.44～0.65 | |||||||||
| SA213 T22 | 0.05～0.15 | ≤0.50 | 0.30～0.60 | ≤0.030 | ≤0.010 | 1.90～2.60 | 0.87～1.13 | |||||||||
| SA213 T23 | 0.04～0.10 | ≤0.50 | 0.10～0.60 | ≤0.030 | ≤0.030 | 1.90～2.60 | 0.05～0.30 | ≤0.030 | 1.45～1.75 | B 0.0005～0.006 | 0.02～0.08 | ≤0.040 | ||||
| SA213 T91 | 0.08～0.12 | 0.20～0.50 | 0.30～0.60 | ≤0.020 | ≤0.010 | 8.00～9.50 | 0.85～1.05 | ≤0.40 | 0.18～0.25 | ≤0.015 | 0.06～0.10 | 0.03～0.07 | ||||
| SA213 T92 | 0.07～0.13 | ≤0.50 | 0.30～0.60 | ≤0.020 | ≤0.010 | 8.50～9.50 | 0.30～0.60 | ≤0.40 | 0.15～0.25 | ≤0.015 | 1.50～2.00 | B 0.001～0.006 | 0.04～0.09 | 0.03～0.07 | ||
| DIN 17175 | ST45.8/Ⅲ | ≤0.21 | 0.10～0.35 | 0.40～1.20 | ≤0.040 | ≤0.040 | ||||||||||
| 15Mo3 | 0.12～0.20 | 0.10～0.35 | 0.40～0.80 | ≤0.035 | ≤0.035 | 0.25～0.35 | ||||||||||
| 13CrMo44 | 0.10～0.18 | 0.10～0.35 | 0.40～0.70 | ≤0.035 | ≤0.035 | 0.70～1.10 | 0.45～0.65 | |||||||||
| 10CrMo910 | 0.08～0.15 | ≤0.50 | 0.30～0.70 | ≤0.025 | ≤0.020 | 2.00～2.50 | 0.90～1.10 | ≤0.30 | ≤0.30 | ≤0.015 |
